[PR #219] [MERGED] QQuickPaintedItem support #250

New issue

Closed

opened 2026-05-05 11:21:39 -06:00 by gitea-mirror · 0 comments

gitea-mirror commented

2026-05-05 11:21:39 -06:00

Owner

📋 Pull Request Information

Original PR: https://github.com/qmlnet/qmlnet/pull/219
Author: @devmil
Created: 8/19/2020
Status: ✅ Merged
Merged: 12/1/2020
Merged by: @pauldotknopf

Base: develop ← Head: feature/QQuickPaintedItem_support

📝 Commits (10+)

bf58cf1 Merge branch 'hotfix/0.10.1'
663e05a Merge branch 'release/0.11.0'
bfbe3d4 First support for QQuickPaintedItem
f9e9eab Less string passing during drawing
61893a6 Color string to id conversion is now an implementation detail of QmlNetPaintedItem
9dd329a Adds Font metrics functionality
a893865 Adds DrawText overload with bounding rectangle
334c42c Dont copy the actions on each draw but lock the vector
cb35ed9 Optional Text support for QmlNetPaintedItem (including preedit)
caa2fb0 Adds Flags to the DrawText (Rect) method

📊 Changes

15 files changed (+1824 additions, -17 deletions)

View changed files

📝 .gitignore (+3 -1)
📝 src/native/QmlNet (+1 -1)
📝 src/net/Qml.Net.Tests/Qml.Net.Tests.csproj (+1 -0)
📝 src/net/Qml.Net.Tests/Qml/BaseQmlTests.cs (+68 -12)
📝 src/net/Qml.Net.Tests/Qml/MvvmInteropBehaviorTests.cs (+0 -1)
➕ src/net/Qml.Net.Tests/Qml/QmlNetQuickPaintedItemTests.cs (+709 -0)
📝 src/net/Qml.Net/Internal/DefaultCallbacks.cs (+2 -2)
📝 src/net/Qml.Net/Internal/Helpers.cs (+11 -0)
📝 src/net/Qml.Net/Internal/Interop.cs (+6 -0)
➕ src/net/Qml.Net/NetQPainter.cs (+779 -0)
📝 src/net/Qml.Net/QCoreApplication.cs (+7 -0)
📝 src/net/Qml.Net/QGuiApplication.cs (+5 -0)
📝 src/net/Qml.Net/QQmlApplicationEngine.cs (+12 -0)
📝 src/net/Qml.Net/Qml.cs (+14 -0)
➕ src/net/Qml.Net/QmlNetQuickPaintedItem.cs (+206 -0)

📄 Description

This PR adds QQuickPaintedItem support to Qml.Net.

I use this currently in a QML.Net based terminal application, so it seems to work.

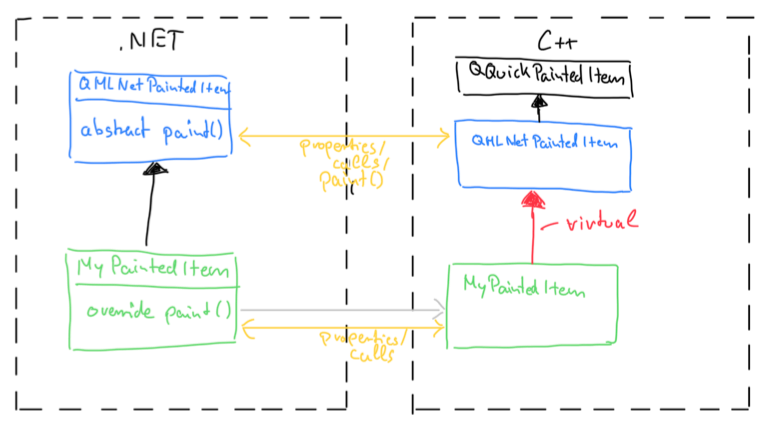

The approach is:

Qml.Net provides a new registered type: QuickItems
Qml.Net provides a .Net base class for painted items: QmlNetPaintedItem
Users create a subclass of QmlNetPaintedItem on .Net side and implement the paint() method
The C++ side makes sure that the paint() call gets routed to the .Net class that can use the QPainter that is passed to do the actual drawing
Qml.Net makes sure that all properties, methods and signals that the QmlNetPaintedItem derived type has are mirrored to QML just as they are with any other type that gets registeres with QML

Example usage:

import Qml.Net 1.0
// [...]
    TerminalQuickPaintedItem {
        id: terminalContent
        anchors.fill: parent
        anchors.margins: terminalMargins
// [...]
    }

public class TerminalQuickPaintedItem : QmlNetQuickPaintedItem
{
    public TerminalViewModel TerminalViewModel { get; set; }

    public override void Paint(NetQPainter painter)
    {
        //implement paint logic
    }
}

//[...]

Qml.Net.Qml.RegisterPaintedQuickItemType<TerminalQuickPaintedItem>(@namespace, versionMajor, versionMinor);

Solves #198
