[GH-ISSUE #282] Change size of outline symbols? #226

New issue

Closed

opened 2026-05-05 11:59:28 -06:00 by gitea-mirror · 7 comments

gitea-mirror commented

2026-05-05 11:59:28 -06:00

Owner

Originally created by @znakeeye on GitHub (Apr 1, 2020).
Original GitHub issue: https://github.com/jmcnamara/libxlsxwriter/issues/282

Originally assigned to: @jmcnamara on GitHub.

Please pay attention to the size of the symbols below.

libxlsxwriter:

old document (wanted):

These two documents seem to have a different default style. I.e. the second one has "Arial 8" and libxlsxwriter has "Calibri 11".

Looking at the worksheet_outline_settings it doesn't take a format argument. Ideas?

Originally created by @znakeeye on GitHub (Apr 1, 2020). Original GitHub issue: https://github.com/jmcnamara/libxlsxwriter/issues/282 Originally assigned to: @jmcnamara on GitHub. Please pay attention to the size of the symbols below. **libxlsxwriter:** ![outline_actual](https://user-images.githubusercontent.com/958469/78136217-8870e980-7423-11ea-9113-d64977efaec0.png) **old document (wanted):** ![outline_expected](https://user-images.githubusercontent.com/958469/78136207-83ac3580-7423-11ea-83b9-368b80799b48.png) These two documents seem to have a different default style. I.e. the second one has "Arial 8" and `libxlsxwriter` has "Calibri 11". Looking at the `worksheet_outline_settings` it doesn't take a `format` argument. Ideas?

gitea-mirror

2026-05-05 11:59:28 -06:00

closed this issue
added the
question

awaiting user feedback
labels

gitea-mirror commented

2026-05-05 11:59:36 -06:00

Author

Owner

@jmcnamara commented on GitHub (Apr 1, 2020):

You need to create a small compilable C program that demonstrates the issue.

@jmcnamara commented on GitHub (Apr 1, 2020): You need to create a small compilable C program that demonstrates the issue.

gitea-mirror commented

2026-05-05 11:59:39 -06:00

Author

Owner

@jmcnamara commented on GitHub (Apr 1, 2020):

You should also verify that what you are seeing isn't Excel's default behaviour, i.e., not a libxlsxwriter issue.

@jmcnamara commented on GitHub (Apr 1, 2020): You should also verify that what you are seeing isn't Excel's default behaviour, i.e., not a libxlsxwriter issue.

gitea-mirror commented

2026-05-05 11:59:44 -06:00

Author

Owner

@znakeeye commented on GitHub (Apr 1, 2020):

Well, I don't know how to reproduce this in libxlsxwriter, since I cannot find an API that allows me to change the font for the outline symbols.

In Excel, you can accomplish this:

Select row 1-3. Data -> Group -> Group...
Click the triangle between A and 1 to select everything.
Change the font to Arial, 8 points.

@znakeeye commented on GitHub (Apr 1, 2020): Well, I don't know how to reproduce this in libxlsxwriter, since I cannot find an API that allows me to change the font for the outline symbols. In Excel, you can accomplish this: 1. Select row 1-3. `Data` -> `Group` -> `Group...` 2. Click the triangle between `A` and `1` to select everything. 3. Change the font to Arial, 8 points.

gitea-mirror commented

2026-05-05 11:59:48 -06:00

Author

Owner

@znakeeye commented on GitHub (Apr 6, 2020):

Please advise!

The way I see it, we are lacking an API to alter the default style. I understand that style is important for measuring etc, but perhaps we could have a way to set it immediately on creating a worksheet?

@znakeeye commented on GitHub (Apr 6, 2020): Please advise! The way I see it, we are lacking an API to alter the default style. I understand that style is important for measuring etc, but perhaps we could have a way to set it immediately on creating a worksheet?

gitea-mirror commented

2026-05-05 11:59:54 -06:00

Author

Owner

@jmcnamara commented on GitHub (Apr 15, 2020):

You may be able to do what you want by setting the default row height via worksheet_set_default_row():

https://libxlsxwriter.github.io/worksheet_8h.html#a74121de7c4f67639b30f302d4af48eb4

For Arial 8 the default row height would be 11.25.

@jmcnamara commented on GitHub (Apr 15, 2020): You may be able to do what you want by setting the default row height via `worksheet_set_default_row()`: https://libxlsxwriter.github.io/worksheet_8h.html#a74121de7c4f67639b30f302d4af48eb4 For Arial 8 the default row height would be 11.25.

gitea-mirror commented

2026-05-05 11:59:58 -06:00

Author

Owner

@znakeeye commented on GitHub (Apr 16, 2020):

Thanks. That actually works. I guess Excel internally sets the default row height like that when selecting the entire sheet.

How did you come up with the number 11.25?

@znakeeye commented on GitHub (Apr 16, 2020): Thanks. That actually works. I guess Excel internally sets the default row height like that when selecting the entire sheet. How did you come up with the number `11.25`?

gitea-mirror commented

2026-05-05 12:00:01 -06:00

Author

Owner

@jmcnamara commented on GitHub (Apr 16, 2020):

How did you come up with the number 11.25?

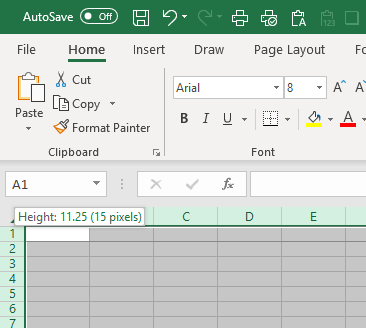

I set the font to Arial 8 using the steps that you described and then checked the height by mouseover in Excel:

@jmcnamara commented on GitHub (Apr 16, 2020): > How did you come up with the number `11.25`? I set the font to Arial 8 using the steps that you described and then checked the height by mouseover in Excel: ![aa_image](https://user-images.githubusercontent.com/94267/79442908-0fe85c00-7fd1-11ea-8123-cf6a814b30ab.png)
