[GH-ISSUE #272] How about a digital simulation of brightness for non-DDC devices? #213

New issue

Closed

opened 2026-05-05 05:25:21 -06:00 by gitea-mirror · 10 comments

gitea-mirror commented

2026-05-05 05:25:21 -06:00

Owner

Originally created by @tylerweitzman on GitHub (Jul 30, 2020).
Original GitHub issue: https://github.com/MonitorControl/MonitorControl/issues/272

Originally assigned to: @waydabber on GitHub.

Checklist

I have searched for existing issues
I have looked through the Monitor Troubleshooting wiki
I have updated MonitorControl to the latest version

I could not get monitor control to work with my projector and the ddcctl tool shows this error

iMac-Pro:ddcctl user$ ./ddcctl -d 1 -b 30
D: NSScreen #1951450272 (1280x720 0°) HiDPI
I: found 1 external display
I: polling display 1's EDID
I: got edid.name: BenQ PJ
D: action: b: 30
D: setting VCP control #16 => 30
E: Failed to send DDC command!

I assume that my projector is not DDC/CI compatible since its manual does not mention it being so (while I found another projector from the same manufacturer whose manual does say it supports it). In any case the only input options I have are HDMI and VGA (and I am using HDMI, is it worth buying a VGA cable?).
In any case assuming that there isn't a solution to get my projector supported, I was wondering about simulating brightness- much the way flux does, or the way that Spotify does if I lower the Spotify volume rather than the projector volume

Environment Information (please complete the following information):

macOS version: 10.14.6
MonitorControl version: 2.0.0
Monitor(s): BenQ HT2150ST Projector
Mac model: iMac Pro
Monitor Cable(s)/Connection(s): HDMI to DisplayPort (Projector input is HDMI/MHL, which connects to an HDMI to USB-C adapter to connect to the iMac)

Originally created by @tylerweitzman on GitHub (Jul 30, 2020). Original GitHub issue: https://github.com/MonitorControl/MonitorControl/issues/272 Originally assigned to: @waydabber on GitHub. **Checklist**  - [x] I have searched for existing issues - [x] I have looked through [the Monitor Troubleshooting wiki](https://github.com/MonitorControl/MonitorControl/wiki/Monitor-Troubleshooting) - [x] I have updated MonitorControl to the latest version I could not get monitor control to work with my projector and the ddcctl tool shows this error ``` iMac-Pro:ddcctl user$ ./ddcctl -d 1 -b 30 D: NSScreen #1951450272 (1280x720 0°) HiDPI I: found 1 external display I: polling display 1's EDID I: got edid.name: BenQ PJ D: action: b: 30 D: setting VCP control #16 => 30 E: Failed to send DDC command! ``` I assume that my projector is not DDC/CI compatible since its manual does not mention it being so (while I found another projector from the same manufacturer whose manual does say it supports it). In any case the only input options I have are HDMI and VGA (and I am using HDMI, is it worth buying a VGA cable?). In any case assuming that there isn't a solution to get my projector supported, I was wondering about simulating brightness- much the way flux does, or the way that Spotify does if I lower the Spotify volume rather than the projector volume **Environment Information (please complete the following information):** - macOS version: 10.14.6 - MonitorControl version: 2.0.0 - Monitor(s): BenQ HT2150ST Projector - Mac model: iMac Pro - Monitor Cable(s)/Connection(s): HDMI to DisplayPort (Projector input is HDMI/MHL, which connects to an HDMI to USB-C adapter to connect to the iMac)

gitea-mirror

2026-05-05 05:25:21 -06:00

closed this issue
added the
done

monitor Issue

feedback needed from reporter
labels

gitea-mirror commented

2026-05-05 05:25:26 -06:00

Author

Owner

@quantumgolem commented on GitHub (Aug 3, 2020):

This would be super cool. In the meantime, check out ScreenShade. Works globally across monitors though.

@quantumgolem commented on GitHub (Aug 3, 2020): This would be super cool. In the meantime, check out ScreenShade. Works globally across monitors though.

gitea-mirror commented

2026-05-05 05:25:28 -06:00

Author

Owner

@amard33p commented on GitHub (Nov 2, 2020):

This would be super cool. In the meantime, check out ScreenShade. Works globally across monitors though.

A free, stripped down alternative https://apps.apple.com/in/app/quickshade/id931571202

@amard33p commented on GitHub (Nov 2, 2020): > This would be super cool. In the meantime, check out ScreenShade. Works globally across monitors though. A free, stripped down alternative https://apps.apple.com/in/app/quickshade/id931571202

gitea-mirror commented

2026-05-05 05:25:29 -06:00

Author

Owner

@amard33p commented on GitHub (Nov 2, 2020):

This feature will also be helpful for cases where the monitor manufacturer did not release DDC compatible drivers for MacOS. A lot of great Dell monitors fall into that category.
References:
https://www.dell.com/community/Monitors/Dell-monitor-Apple-FAQ/td-p/7380520
https://apple.stackexchange.com/questions/61045/does-apple-support-ddc-ci-for-3rd-party-displays-via-apples-thunderbolt-to-dvi

@amard33p commented on GitHub (Nov 2, 2020): This feature will also be helpful for cases where the monitor manufacturer did not release DDC compatible drivers for MacOS. A lot of great Dell monitors fall into that category. References: https://www.dell.com/community/Monitors/Dell-monitor-Apple-FAQ/td-p/7380520 https://apple.stackexchange.com/questions/61045/does-apple-support-ddc-ci-for-3rd-party-displays-via-apples-thunderbolt-to-dvi

gitea-mirror commented

2026-05-05 05:25:31 -06:00

Author

Owner

@quantumgolem commented on GitHub (Dec 19, 2020):

This would be super cool. In the meantime, check out ScreenShade. Works globally across monitors though.

A free, stripped down alternative https://apps.apple.com/in/app/quickshade/id931571202

Interesting, that's the one I actually use. I must have mistyped xD

@quantumgolem commented on GitHub (Dec 19, 2020): > > This would be super cool. In the meantime, check out ScreenShade. Works globally across monitors though. > > A free, stripped down alternative https://apps.apple.com/in/app/quickshade/id931571202 Interesting, that's the one I actually use. I must have mistyped xD

gitea-mirror commented

2026-05-05 05:25:33 -06:00

Author

Owner

@waydabber commented on GitHub (Aug 19, 2021):

I added this in the new 3.0.0 beta builds (will be enabled by default in future releases as a fallback option). MonitorControl's implementation is superior to quickshade as it uses proper gamma table manipulation which results in better visuals and also affects the mouse cursors (unlike QuickShade).

Please try it and if it works, close this issue. Thanks!

@waydabber commented on GitHub (Aug 19, 2021): I added this in the new 3.0.0 beta builds (will be enabled by default in future releases as a fallback option). MonitorControl's implementation is superior to quickshade as it uses proper gamma table manipulation which results in better visuals and also affects the mouse cursors (unlike QuickShade). Please try it and if it works, close this issue. Thanks!

gitea-mirror commented

2026-05-05 05:25:34 -06:00

Author

Owner

@waydabber commented on GitHub (Aug 21, 2021):

Hi, we have relased the 3.0.0 version. Could you please test if this issue is resolved and report back? Thank you!

@waydabber commented on GitHub (Aug 21, 2021): Hi, we have relased the [3.0.0 version](https://github.com/MonitorControl/MonitorControl/releases/tag/v3.0.0-rc1). Could you please test if this issue is resolved and report back? Thank you!

gitea-mirror commented

2026-05-05 05:25:36 -06:00

Author

Owner

@amard33p commented on GitHub (Aug 21, 2021):

@waydabber, In the release notes of 3.0.0-rc1 it says

Enable software dimming if required, this is enabled by default.

But the option was not enabled by default when I installed it.

Also if only "Enable software dimming" is checked, the slider does not seem to have any effect on the external monitor brightness. Only if we also check "Further lower brightness via s/w dimming" does the black overlay appear.

Check out the screen recording : https://ufile.io/i0mhnc9h

Monitor model: Dell P2419H connected via USB C <> HDMI

@amard33p commented on GitHub (Aug 21, 2021): @waydabber, In the [release notes of 3.0.0-rc1](https://github.com/MonitorControl/MonitorControl/releases/tag/v3.0.0-rc1) it says >Enable software dimming if required, this is enabled by default. But the option was not enabled by default when I installed it. Also if only "Enable software dimming" is checked, the slider does not seem to have any effect on the external monitor brightness. Only if we also check "Further lower brightness via s/w dimming" does the black overlay appear. Check out the screen recording : https://ufile.io/i0mhnc9h Monitor model: Dell P2419H connected via USB C <> HDMI

gitea-mirror commented

2026-05-05 05:25:37 -06:00

Author

Owner

@waydabber commented on GitHub (Aug 21, 2021):

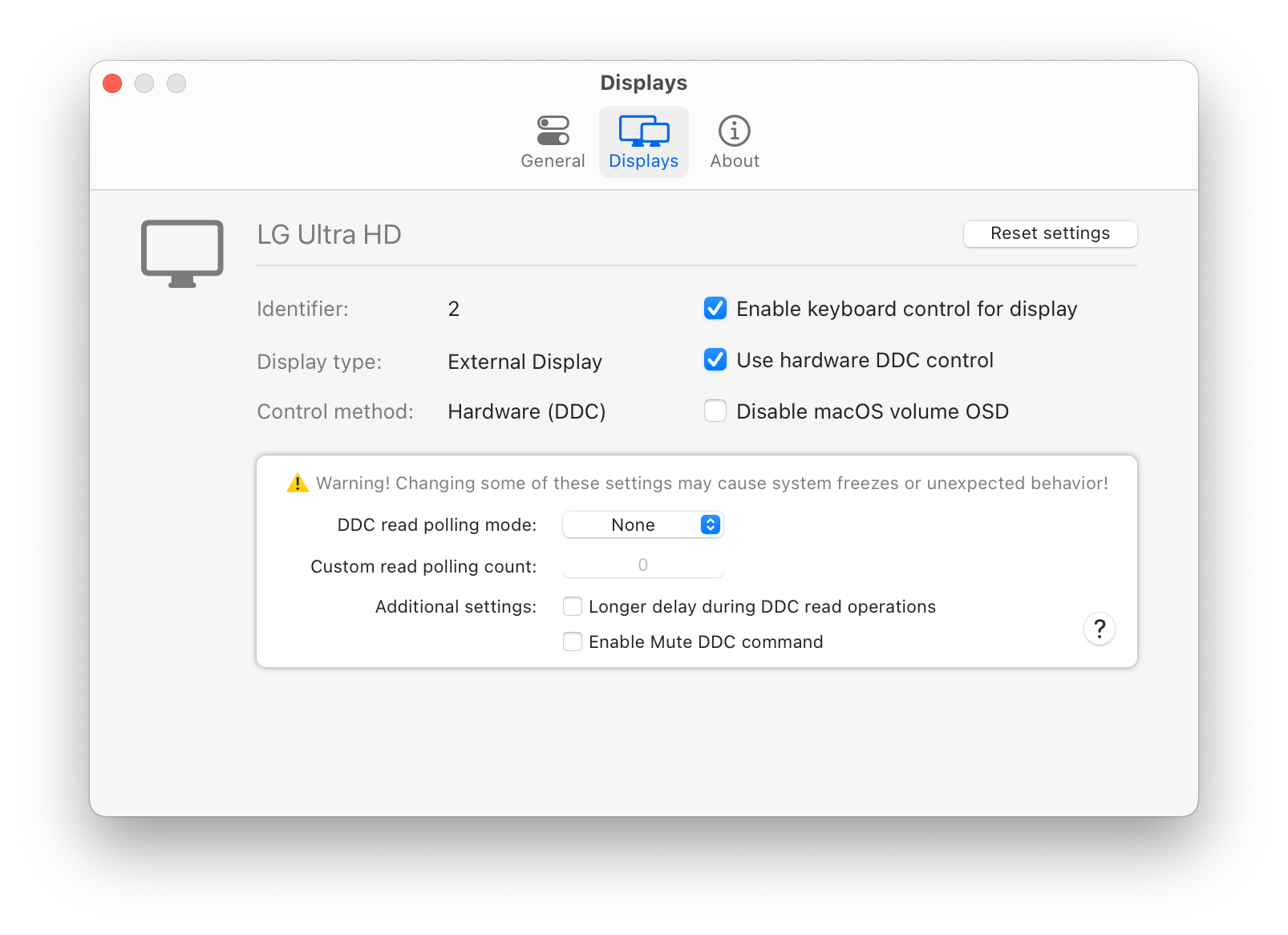

Hi, the slider will only have effect if you disable "Use hardware DDC control" for the display in the Displays tab. Otherwise MC thinks it can control the display via DDC (while in practice it can't since something is wrong with the display firmware).

@waydabber commented on GitHub (Aug 21, 2021): Hi, the slider will only have effect if you disable "Use hardware DDC control" for the display in the Displays tab. Otherwise MC thinks it can control the display via DDC (while in practice it can't since something is wrong with the display firmware). <img width="803" alt="Screen Shot 2021-08-21 at 17 38 39" src="https://user-images.githubusercontent.com/37590873/130327195-5280a138-1538-4374-8da5-ccb732adf14f.png">

gitea-mirror commented

2026-05-05 05:25:38 -06:00

Author

Owner

@amard33p commented on GitHub (Aug 21, 2021):

Hi, the slider will only have effect if you disable "Use hardware DDC control" for the display in the Displays tab. Otherwise MC thinks it can control the display via DDC (while in practice it can't since something is wrong with the display firmware).

Ahh I see...It works now! But it's not readily apparent to a new user.
Might I suggest that if "Enable software dimming" is checked "Use hardware DDC control" is automatically deselected?
I don't see a reason why a user would need both.

@amard33p commented on GitHub (Aug 21, 2021): > Hi, the slider will only have effect if you disable "Use hardware DDC control" for the display in the Displays tab. Otherwise MC thinks it can control the display via DDC (while in practice it can't since something is wrong with the display firmware). > > <img alt="Screen Shot 2021-08-21 at 17 38 39" width="803" src="https://user-images.githubusercontent.com/37590873/130327195-5280a138-1538-4374-8da5-ccb732adf14f.png"> Ahh I see...It works now! But it's not readily apparent to a new user. Might I suggest that if "Enable software dimming" is checked "Use hardware DDC control" is automatically deselected? I don't see a reason why a user would need both.

gitea-mirror commented

2026-05-05 05:25:39 -06:00

Author

Owner

@waydabber commented on GitHub (Aug 21, 2021):

There are displays that are not controllable and MontorControl knows about it. The feautre is mainly for these situations, but can be used for a display with faulty firmware as well - but since MC can't detect this, the user manually has to disable hardware control.

I'm glad that it works now, hope you like this new function! I'll close the issue for now then. :)

@waydabber commented on GitHub (Aug 21, 2021): There are displays that are not controllable and MontorControl knows about it. The feautre is mainly for these situations, but can be used for a display with faulty firmware as well - but since MC can't detect this, the user manually has to disable hardware control. I'm glad that it works now, hope you like this new function! I'll close the issue for now then. :)
