[GH-ISSUE #201] Volume/brightness increments don't work properly on non standard scales #150

New issue
Closed
opened 2026-05-05 05:16:57 -06:00 by gitea-mirror · 9 comments
gitea-mirror commented 2026-05-05 05:16:57 -06:00
Owner
Copy link

Originally created by @victorchabbert on GitHub (Apr 16, 2020).
Original GitHub issue: https://github.com/MonitorControl/MonitorControl/issues/201

Hello,

When using my monitor over usb-c with the lid closed and a magic keyboard 2, my volume is capped at 4 bars when using the media keys (12/50 in monitor values).
However, when using ⇧ + ⌥ + Volume up/down, I can increase the volume above 4 bars.
Moreover, once this threshold crossed, I cannot increase volume in normal increments; decreasing works fine.

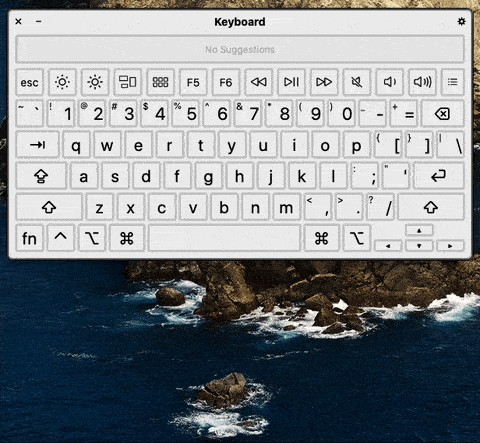

Screen Recording 2020-04-16 at 15 03 54

Using the sliders from the menu bars works even though the volume and brightness sections are greyed out.

Greyed out sections in the menubar screenshot

Screenshot 2020-04-16 at 15 11 19

Troubleshooting:

  • Restarted macbook
  • Restarted monitor
  • Ran ddcctl (see below)
  • Tried different cables:
    • USB-C to USB-C
    • HDMI to USB-C

ddcctl

I compiled ddcctl locally for amd and intel.
Running ./ddcctl -d 1 -v <volume> was successful in changing the volume.
(My monitor volume ranges between 0 and 50)

Information:

Type Model/Version
Display BenQ EX2780q over USB-C
Device MBP 15" (2016)
OS 10.15.4
Monitor Control 2.0.0 (Build 640)
Originally created by @victorchabbert on GitHub (Apr 16, 2020). Original GitHub issue: https://github.com/MonitorControl/MonitorControl/issues/201 Hello, When using my monitor over usb-c with the lid closed and a magic keyboard 2, my volume is capped at 4 bars when using the media keys (12/50 in monitor values). However, when using ⇧ + ⌥ + Volume up/down, I can increase the volume above 4 bars. Moreover, once this threshold crossed, I cannot increase volume in normal increments; decreasing works fine. ![Screen Recording 2020-04-16 at 15 03 54](https://user-images.githubusercontent.com/10966568/79459626-d7a64500-7ff3-11ea-9fcf-e26c5fd1f670.gif) Using the sliders from the menu bars works even though the volume and brightness sections are greyed out. <details> <summary>Greyed out sections in the menubar screenshot</summary> ![Screenshot 2020-04-16 at 15 11 19](https://user-images.githubusercontent.com/10966568/79460203-c1e54f80-7ff4-11ea-8ec7-93d3002e30b3.png) </details> ## Troubleshooting: - [x] Restarted macbook - [x] Restarted monitor - [x] Ran ddcctl (see below) - [x] Tried different cables: - USB-C to USB-C - HDMI to USB-C ### ddcctl I compiled ddcctl locally for amd and intel. Running `./ddcctl -d 1 -v <volume>` was successful in changing the volume. (My monitor volume ranges between 0 and 50) ## Information: | Type | Model/Version | |-------------------------|-------------------| | Display | BenQ EX2780q over USB-C | | Device | MBP 15" (2016) | | OS | 10.15.4 | | Monitor Control | 2.0.0 (Build 640) |
gitea-mirror 2026-05-05 05:16:57 -06:00
  • closed this issue
  • added the
    bug
         label
gitea-mirror commented 2026-05-05 05:17:07 -06:00
Author
Owner
Copy link

@marosholly commented on GitHub (Apr 28, 2020):

I have the issue with the same monitor + mac mini 2018

<!-- gh-comment-id:620563133 --> @marosholly commented on GitHub (Apr 28, 2020): I have the issue with the same monitor + mac mini 2018
gitea-mirror commented 2026-05-05 05:17:11 -06:00
Author
Owner
Copy link

@bottlebug commented on GitHub (May 14, 2020):

I have a similar issue.

At this level, my monitor displays it at 95/100. Any higher and it will go above 100 which doesn't make any sense. Each increment is also not the same value.

Screen Shot 2020-05-14 at 5 20 56 PM

<!-- gh-comment-id:628393857 --> @bottlebug commented on GitHub (May 14, 2020): I have a similar issue. At this level, my monitor displays it at 95/100. Any higher and it will go above 100 which doesn't make any sense. Each increment is also not the same value. ![Screen Shot 2020-05-14 at 5 20 56 PM](https://user-images.githubusercontent.com/16513636/81895876-631cf100-9607-11ea-9185-24a7bd86192e.png)
gitea-mirror commented 2026-05-05 05:17:13 -06:00
Author
Owner
Copy link

@JoniVR commented on GitHub (Jun 10, 2020):

I wonder if this is a Monitor specific issue or a problem with MonitorControl 🤔

Each increment is also not the same value.

This is a feature, it's done this way because we display the native macOS OSD and otherwise it would end up with uneven chicklet filling or other issues.

<!-- gh-comment-id:642095386 --> @JoniVR commented on GitHub (Jun 10, 2020): I wonder if this is a Monitor specific issue or a problem with MonitorControl 🤔 > Each increment is also not the same value. This is a feature, it's done this way because we display the native macOS OSD and otherwise it would end up with uneven chicklet filling or other issues.
gitea-mirror commented 2026-05-05 05:17:16 -06:00
Author
Owner
Copy link

@victorchabbert commented on GitHub (Jun 10, 2020):

Is MonitorControl a wrapper around ddcctl ?

I might take a stab at modifying the app locally to see if I can get something working

<!-- gh-comment-id:642143005 --> @victorchabbert commented on GitHub (Jun 10, 2020): Is MonitorControl a wrapper around `ddcctl` ? I might take a stab at modifying the app locally to see if I can get something working
gitea-mirror commented 2026-05-05 05:17:17 -06:00
Author
Owner
Copy link

@JoniVR commented on GitHub (Jun 10, 2020):

Not anymore, it's currently using https://github.com/reitermarkus/DDC.swift

<!-- gh-comment-id:642143432 --> @JoniVR commented on GitHub (Jun 10, 2020): Not anymore, it's currently using https://github.com/reitermarkus/DDC.swift
gitea-mirror commented 2026-05-05 05:17:18 -06:00
Author
Owner
Copy link

@JoniVR commented on GitHub (Jun 10, 2020):

My best guess is it has something to do with the way we currently calculate volume steps and the fact that your monitor maxes out at 50, but I'm not sure.

<!-- gh-comment-id:642163560 --> @JoniVR commented on GitHub (Jun 10, 2020): My best guess is it has something to do with the way we currently calculate volume steps and the fact that your monitor maxes out at 50, but I'm not sure.
gitea-mirror commented 2026-05-05 05:17:20 -06:00
Author
Owner
Copy link

@victorchabbert commented on GitHub (Jun 10, 2020):

Hum I see. Would it be realistic to add an option to specify the upper cap ?
I could try to verify this theory by changing the cap if need

<!-- gh-comment-id:642164679 --> @victorchabbert commented on GitHub (Jun 10, 2020): Hum I see. Would it be realistic to add an option to specify the upper cap ? I could try to verify this theory by changing the cap if need
gitea-mirror commented 2026-05-05 05:17:22 -06:00
Author
Owner
Copy link

@JoniVR commented on GitHub (Jun 10, 2020):

Yes, either we take a look at the calculation method again or provide the ability to define a custom bounds. I think the custom bounds is probably the best approach as every single monitor seems to do something different.. lol.

<!-- gh-comment-id:642169656 --> @JoniVR commented on GitHub (Jun 10, 2020): Yes, either we take a look at the calculation method again or provide the ability to define a custom bounds. I think the custom bounds is probably the best approach as every single monitor seems to do something different.. lol.
gitea-mirror commented 2026-05-05 05:17:23 -06:00
Author
Owner
Copy link

@victorchabbert commented on GitHub (Jun 10, 2020):

After compiling and running locally, I got this at startup:

startup logs
2020-06-10 21:50:29.946110+0200 MonitorControl[57013:921861] [plugin] AddInstanceForFactory: No factory registered for id <REMOVED>
2020-06-10 21:50:29.985942+0200 MonitorControl[57013:921861]  HALC_ShellDriverPlugIn::Open: Can't get a pointer to the Open routine
2020-06-10 21:50:29.986665+0200 MonitorControl[57013:921861]  HALC_ShellDriverPlugIn::Open: Can't get a pointer to the Open routine
2020-06-10 21:50:30.013714+0200 MonitorControl[57013:921861]  HALC_ShellDriverPlugIn::Open: Can't get a pointer to the Open routine
Event tap creation failed: is your application sandboxed?
2020-06-10 21:50:30.129573+0200 MonitorControl[57013:921861] Metal API Validation Enabled
2020-06-10 21:50:30.288786+0200 MonitorControl[57013:922421] flock failed to lock maps file: errno = 35
2020-06-10 21:50:30.324510+0200 MonitorControl[57013:922421] flock failed to lock maps file: errno = 35
2020-06-10 21:51:03.083698+0200 MonitorControl[57013:921861] Service port vendor ID 0 differs from display product ID 2513.
2020-06-10 21:51:03.085799+0200 MonitorControl[57013:921861] Framebuffer: AMDFramebufferVIB
2020-06-10 21:51:03.085842+0200 MonitorControl[57013:921861] Location: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEG0@1/IOPP/GFX0@0/ATY,Berbice@1/AMDFramebufferVIB/display0/AppleDisplay
2020-06-10 21:51:03.085870+0200 MonitorControl[57013:921861] Vendor ID: 2513, Product ID: 32630, Serial Number: 21573
2020-06-10 21:51:03.085888+0200 MonitorControl[57013:921861] Unit Number: 7
2020-06-10 21:51:03.085898+0200 MonitorControl[57013:921861] Service Port: 57363
2020-06-10 21:51:03.086551+0200 MonitorControl[57013:921861] kIOI2CSimpleTransactionType is supported.
2020-06-10 21:51:03.086786+0200 MonitorControl[57013:921861] Supported display found: BenQ EX2780Q (Vendor: 2513, Model: 32630)
2020-06-10 21:51:03.094209+0200 MonitorControl[57013:921861] Polling 10 times
2020-06-10 21:51:03.098524+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.098657+0200 MonitorControl[57013:921861] Response was: 00 00 00
2020-06-10 21:51:03.098675+0200 MonitorControl[57013:921861] Display does not support DDC.
2020-06-10 21:51:03.154646+0200 MonitorControl[57013:921861] Display supports enabling DDC application report.
2020-06-10 21:51:03.212942+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.213110+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.261382+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.261496+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.308299+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.308423+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.355068+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 228.
2020-06-10 21:51:03.355188+0200 MonitorControl[57013:921861] Response was: 62 00 00 32 00 0C E8 00 00 00 00
2020-06-10 21:51:03.403766+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.403903+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.452596+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.452711+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.501163+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.501327+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.549436+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.549597+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.598476+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.598588+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.646532+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.646646+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.646724+0200 MonitorControl[57013:921861] Reading 98 failed.
2020-06-10 21:51:03.647429+0200 MonitorControl[57013:921861] BenQ EX2780Q (DDC.DDC.Command.audioSpeakerVolume):
2020-06-10 21:51:03.647453+0200 MonitorControl[57013:921861]  - current ddc value: 12 - from display? false
2020-06-10 21:51:03.647465+0200 MonitorControl[57013:921861]  - maximum ddc value: 50 - from display? false
2020-06-10 21:51:03.647478+0200 MonitorControl[57013:921861] Polling 10 times
2020-06-10 21:51:03.647493+0200 MonitorControl[57013:921861] BenQ EX2780Q (DDC.DDC.Command.audioMuteScreenBlank):
2020-06-10 21:51:03.695152+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 50.
2020-06-10 21:51:03.695254+0200 MonitorControl[57013:921861] Response was: 00 62 00
2020-06-10 21:51:03.695271+0200 MonitorControl[57013:921861] Display does not support DDC.
2020-06-10 21:51:03.751723+0200 MonitorControl[57013:921861] Display supports enabling DDC application report.
2020-06-10 21:51:03.809028+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.809205+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.857687+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.857808+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.906231+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.906350+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:03.954414+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:03.954534+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.003777+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.003937+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.052573+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.052688+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.098695+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.098812+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.147349+0200 MonitorControl[57013:921861] Reading 141 took 8 tries.
2020-06-10 21:51:04.147389+0200 MonitorControl[57013:921861]  - current ddc value: 2
2020-06-10 21:51:04.147399+0200 MonitorControl[57013:921861]  - maximum ddc value: 2
2020-06-10 21:51:04.151176+0200 MonitorControl[57013:921861] Polling 10 times
2020-06-10 21:51:04.195240+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.195378+0200 MonitorControl[57013:921861] Response was: 00 00 00
2020-06-10 21:51:04.195405+0200 MonitorControl[57013:921861] Display does not support DDC.
2020-06-10 21:51:04.251659+0200 MonitorControl[57013:921861] Display supports enabling DDC application report.
2020-06-10 21:51:04.308853+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.308974+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.356833+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.356960+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.403957+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.404078+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.452576+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 228.
2020-06-10 21:51:04.452691+0200 MonitorControl[57013:921861] Response was: 10 00 00 64 00 12 D2 00 00 00 00
2020-06-10 21:51:04.498163+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.498275+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.546428+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.546540+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.594234+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.594347+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.641869+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.641988+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.689950+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 228.
2020-06-10 21:51:04.690078+0200 MonitorControl[57013:921861] Response was: 10 00 00 64 00 12 D2 00 00 00 00
2020-06-10 21:51:04.738796+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80.
2020-06-10 21:51:04.738935+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00
2020-06-10 21:51:04.738959+0200 MonitorControl[57013:921861] Reading 16 failed.
2020-06-10 21:51:04.739082+0200 MonitorControl[57013:921861] BenQ EX2780Q (DDC.DDC.Command.luminance):
2020-06-10 21:51:04.739099+0200 MonitorControl[57013:921861]  - current ddc value: 18 - from display? false
2020-06-10 21:51:04.739112+0200 MonitorControl[57013:921861]  - maximum ddc value: 100 - from display? false

Does it help triaging the issue ?

I will investigate further at some other time.

<!-- gh-comment-id:642230691 --> @victorchabbert commented on GitHub (Jun 10, 2020): After compiling and running locally, I got this at startup: <details> <summary>startup logs</summary> ``` 2020-06-10 21:50:29.946110+0200 MonitorControl[57013:921861] [plugin] AddInstanceForFactory: No factory registered for id <REMOVED> 2020-06-10 21:50:29.985942+0200 MonitorControl[57013:921861] HALC_ShellDriverPlugIn::Open: Can't get a pointer to the Open routine 2020-06-10 21:50:29.986665+0200 MonitorControl[57013:921861] HALC_ShellDriverPlugIn::Open: Can't get a pointer to the Open routine 2020-06-10 21:50:30.013714+0200 MonitorControl[57013:921861] HALC_ShellDriverPlugIn::Open: Can't get a pointer to the Open routine Event tap creation failed: is your application sandboxed? 2020-06-10 21:50:30.129573+0200 MonitorControl[57013:921861] Metal API Validation Enabled 2020-06-10 21:50:30.288786+0200 MonitorControl[57013:922421] flock failed to lock maps file: errno = 35 2020-06-10 21:50:30.324510+0200 MonitorControl[57013:922421] flock failed to lock maps file: errno = 35 2020-06-10 21:51:03.083698+0200 MonitorControl[57013:921861] Service port vendor ID 0 differs from display product ID 2513. 2020-06-10 21:51:03.085799+0200 MonitorControl[57013:921861] Framebuffer: AMDFramebufferVIB 2020-06-10 21:51:03.085842+0200 MonitorControl[57013:921861] Location: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEG0@1/IOPP/GFX0@0/ATY,Berbice@1/AMDFramebufferVIB/display0/AppleDisplay 2020-06-10 21:51:03.085870+0200 MonitorControl[57013:921861] Vendor ID: 2513, Product ID: 32630, Serial Number: 21573 2020-06-10 21:51:03.085888+0200 MonitorControl[57013:921861] Unit Number: 7 2020-06-10 21:51:03.085898+0200 MonitorControl[57013:921861] Service Port: 57363 2020-06-10 21:51:03.086551+0200 MonitorControl[57013:921861] kIOI2CSimpleTransactionType is supported. 2020-06-10 21:51:03.086786+0200 MonitorControl[57013:921861] Supported display found: BenQ EX2780Q (Vendor: 2513, Model: 32630) 2020-06-10 21:51:03.094209+0200 MonitorControl[57013:921861] Polling 10 times 2020-06-10 21:51:03.098524+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.098657+0200 MonitorControl[57013:921861] Response was: 00 00 00 2020-06-10 21:51:03.098675+0200 MonitorControl[57013:921861] Display does not support DDC. 2020-06-10 21:51:03.154646+0200 MonitorControl[57013:921861] Display supports enabling DDC application report. 2020-06-10 21:51:03.212942+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.213110+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.261382+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.261496+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.308299+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.308423+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.355068+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 228. 2020-06-10 21:51:03.355188+0200 MonitorControl[57013:921861] Response was: 62 00 00 32 00 0C E8 00 00 00 00 2020-06-10 21:51:03.403766+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.403903+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.452596+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.452711+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.501163+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.501327+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.549436+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.549597+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.598476+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.598588+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.646532+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.646646+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.646724+0200 MonitorControl[57013:921861] Reading 98 failed. 2020-06-10 21:51:03.647429+0200 MonitorControl[57013:921861] BenQ EX2780Q (DDC.DDC.Command.audioSpeakerVolume): 2020-06-10 21:51:03.647453+0200 MonitorControl[57013:921861] - current ddc value: 12 - from display? false 2020-06-10 21:51:03.647465+0200 MonitorControl[57013:921861] - maximum ddc value: 50 - from display? false 2020-06-10 21:51:03.647478+0200 MonitorControl[57013:921861] Polling 10 times 2020-06-10 21:51:03.647493+0200 MonitorControl[57013:921861] BenQ EX2780Q (DDC.DDC.Command.audioMuteScreenBlank): 2020-06-10 21:51:03.695152+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 50. 2020-06-10 21:51:03.695254+0200 MonitorControl[57013:921861] Response was: 00 62 00 2020-06-10 21:51:03.695271+0200 MonitorControl[57013:921861] Display does not support DDC. 2020-06-10 21:51:03.751723+0200 MonitorControl[57013:921861] Display supports enabling DDC application report. 2020-06-10 21:51:03.809028+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.809205+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.857687+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.857808+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.906231+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.906350+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:03.954414+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:03.954534+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.003777+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.003937+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.052573+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.052688+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.098695+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.098812+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.147349+0200 MonitorControl[57013:921861] Reading 141 took 8 tries. 2020-06-10 21:51:04.147389+0200 MonitorControl[57013:921861] - current ddc value: 2 2020-06-10 21:51:04.147399+0200 MonitorControl[57013:921861] - maximum ddc value: 2 2020-06-10 21:51:04.151176+0200 MonitorControl[57013:921861] Polling 10 times 2020-06-10 21:51:04.195240+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.195378+0200 MonitorControl[57013:921861] Response was: 00 00 00 2020-06-10 21:51:04.195405+0200 MonitorControl[57013:921861] Display does not support DDC. 2020-06-10 21:51:04.251659+0200 MonitorControl[57013:921861] Display supports enabling DDC application report. 2020-06-10 21:51:04.308853+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.308974+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.356833+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.356960+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.403957+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.404078+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.452576+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 228. 2020-06-10 21:51:04.452691+0200 MonitorControl[57013:921861] Response was: 10 00 00 64 00 12 D2 00 00 00 00 2020-06-10 21:51:04.498163+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.498275+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.546428+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.546540+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.594234+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.594347+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.641869+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.641988+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.689950+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 228. 2020-06-10 21:51:04.690078+0200 MonitorControl[57013:921861] Response was: 10 00 00 64 00 12 D2 00 00 00 00 2020-06-10 21:51:04.738796+0200 MonitorControl[57013:921861] Checksum of reply does not match. Expected 0, got 80. 2020-06-10 21:51:04.738935+0200 MonitorControl[57013:921861] Response was: 00 00 00 00 00 00 00 00 00 00 00 2020-06-10 21:51:04.738959+0200 MonitorControl[57013:921861] Reading 16 failed. 2020-06-10 21:51:04.739082+0200 MonitorControl[57013:921861] BenQ EX2780Q (DDC.DDC.Command.luminance): 2020-06-10 21:51:04.739099+0200 MonitorControl[57013:921861] - current ddc value: 18 - from display? false 2020-06-10 21:51:04.739112+0200 MonitorControl[57013:921861] - maximum ddc value: 100 - from display? false ``` </details> Does it help triaging the issue ? I will investigate further at some other time.
Sign in to join this conversation.
No Branch/Tag specified
Branches Tags
main
develop
github-pages
v4.3.3
v4.3.2
v4.2.0
v4.1.0
v4.0.2
v4.0.1
v4.0.0
v4.0.0-rc1
v4.0.0-beta2
v4.0.0-beta1
v3.1.1
v3.1.0
v3.0.0
v3.0.0-rc2
v3.0.0-rc1
v3.0.0-beta8
v3.0.0-beta7
v3.0.0-beta6
v3.0.0-beta5
v3.0.0-beta4
v3.0.0-beta3
v3.0.0-beta2
v3.0.0-beta1
v2.1.0
v2.0.0
v1.7.1
v1.7.0
v1.6.0
v1.5.2
v1.5.0
v1.4.0
1.3.1
v1.3
v1.2.2
v1.3.0
v1.2.1
v1.2
v1.1
v1.0
Labels
Clear labels
Status: Abandoned


arm64


beta


beta


bug


done


duplicate


enhancement


feedback needed from reporter


in progress


invalid


investigating


known Issue


monitor Issue


pull-request

Mirrored from GitHub Pull Request


translation


unable to reproduce


unreleased


x86
No labels
Status: Abandoned
arm64
beta
beta
bug
done
duplicate
enhancement
feedback needed from reporter
in progress
invalid
investigating
known Issue
monitor Issue
pull-request
translation
unable to reproduce
unreleased
x86
Milestone
Clear milestone
No items
No milestone
Projects
Clear projects
No items
No project
Assignees
Clear assignees
No assignees
1 participant
Notifications
Due date
The due date is invalid or out of range. Please use the format "yyyy-mm-dd".

No due date set.

Dependencies

No dependencies set.

Reference: github-starred/MonitorControl#150
No description provided.
Delete branch "%!s()"

Deleting a branch is permanent. Although the deleted branch may continue to exist for a short time before it actually gets removed, it CANNOT be undone in most cases. Continue?
